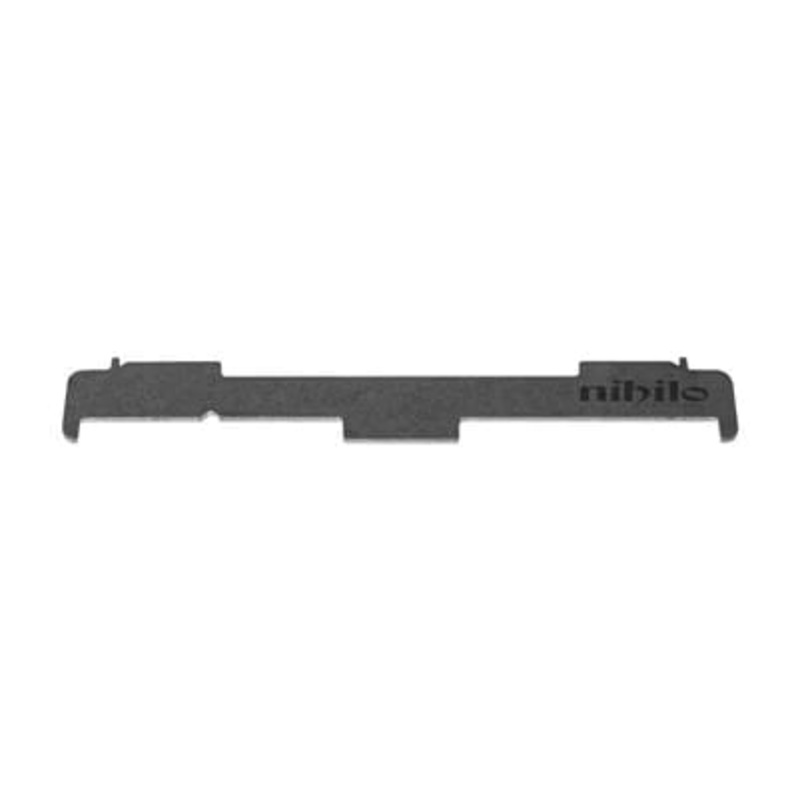

Nihilo 250/300 Timing/Deck Tool
STAINLESS STEEL 2009-2016 – 2017-2021 TPI

Nihilo has designed a new deck and power Valve tool for the KTM and Husqvarna 250 and 300 Two Strokes. The service manual shows you how to adjust the deck height or X- distance for the piston protrusion and the Z distance from the lower edge of the power valve flap to the upper edge of the cylinder. There is no need for a special depth gauge or the OEM tool, the Nihilo tool does it all in one. The stainless Steel tool is strong and will last a life time, all the distances are precision laser cut into the tool so there is no need for a depth gauge. Both the 250 and 300 adjustments are on the same tool the 300 is marked with a V cut out on the edge of the power valve adjustment, the X distance is the same for both bikes.

Fitment:

• 2009-2016
• 2017-2021 TPI and Carburetor
• 2021 GASGAS

NDT250M-2
