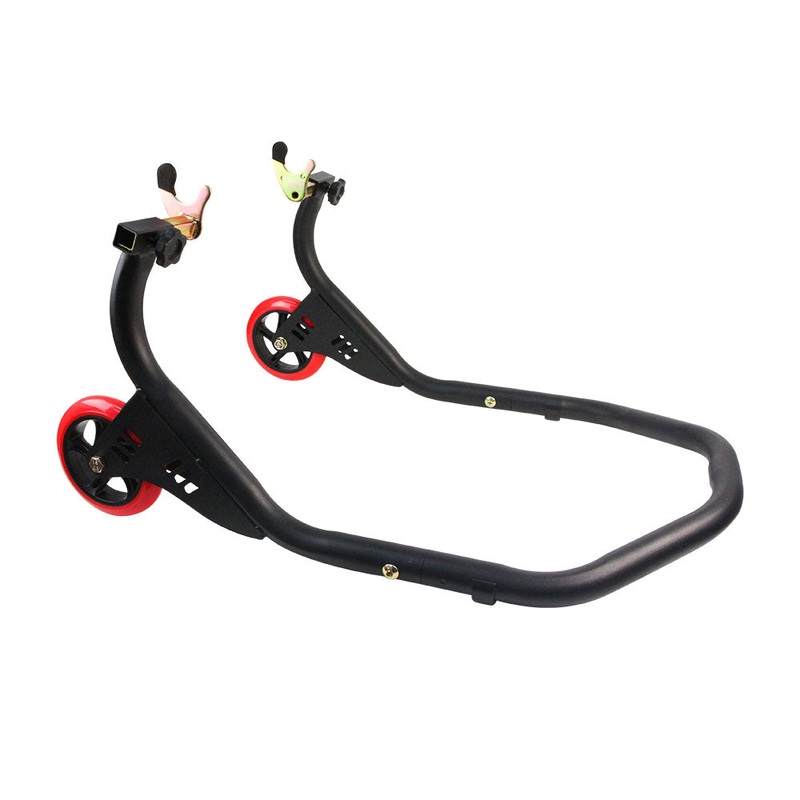

LA CORSA Motorcycle Front Lift – fixed height design

• Utilizes the lower steering stem hole for the lifting point.
• Sturdy 4 wheel design – excellent stability and easy to use.
• Flat Pack packaging for transportation – easy to assemble.
• Collapsible design for convenient storage at home, work or in the transporter.
• Supplied with 5 standard fitting size pins: 13mm, 15mm, 16.5mm, 17mm and 18mm.
• Load Capacity 200kgs

Note : Optional larger size pins are available (sold separately) – see below for size and part number.
Measure the inside hole diameter of the steering stem at the lower end.

• 19mm – P# 70-3037-19
• 20mm – P# 70-3037-20
• 21mm – P# 70-3037-21
• 23mm – P# 70-3037-23
• 24mm – P# 70-3037-24
• 27mm – P# 70-3037-27
• 28.4mm – P# 70-3037-28

Caution : only use this stand on flat level and hard floor surfaces.

Supplied pins are also available to purchase seperately as spare parts

• 13mm – P# 70-3037-13
• 15mm – P# 70-3037-15
• 16.5mm – P# 70-3037-16
• 17mm – P# 70-3037-17
• 18mm – P# 70-3037-18
