Husqvarna Plug & Play AiM Taipan Motocross ECU Kit

For people who are serious about performance (like us), the cutting edge technology of AiM Taipan ECUs is too awesome to ignore!

• Fast 32-bit processor– more precise tuning, bike runs noticeably smoother, and we can squeeze out evenmorepower! Welcome to the 21st century
• Advanced configurations –better temperature and altitude corrections, engine braking, quickshift, etc
• AvailableAdvanced Handlebar Switch– on-the-fly fuel corrections,toggle through 5 maps, activate launchcontrol / traction control
• Available UC User Bridge – connect your ECU to tuning software on your computer. Receive future new maps from us toreflash yourself directly, plus in-depth tweaking to the mapping and configuration, and diagnostics
• Two extra digital outputs – control second injector or other future gadgets. Also, additional inputs for managing possible new sensors
• Availablefor most current-gen 250Fs, 450s and 500s.

Taipanis the brand-new aftermarket plug & play ECU created by AiM, exclusively designed for off-road bikes. Thanks to its high technology 32-bit core, it represents an important step forward to improve the performance of your bike, without sacrificing reliability and smoothness.

It provides the ultimate control in feeling, ignition, ignition phase, start maps, launch control, traction control with altitude and engine temperature corrections.

TaipanKey Features & Advanced Strategies

Traction Control Strategy

For each map, the ECU has a dedicated traction control main table.

Launch Control

For each map, the ECU has a dedicated launch control main table.

High Technology 32-bit Core

Engine control requires precision. At 20,000 RPM theTaipanECU guarantees the precision of 1/10 of degree: this means an accuracy within 0.8 use for turning the spark ON!

This precision is the key to guarantee :

A very consistent engine rotation.

The possibility to repeat dozens of tests at the bench, always obtaining the same exact result.

A perfect reactivity at every minimum change of any point of a map, resulting in more power at the wheel.

UC Bridge – Optional Extra

The UC Bridge is the connection between the CAN bus of the ECCU and the USB port of your PC. It is available in 2 different licenses :

User License :ATaipanECU comes with some basic maps that already give you better performance than the stock maps. Highly professional tuners all over the world offer specific maps that better fit your requirements, managing, for example, different exhaust, two injectors etc.

The UC Bridge is required for two functions :
– Transfer new and different maps to your ECU through the User License UC Bridge.
– Receiving diagnostic information from theTaipanECU.

Tuner License :

With this license, the tuner can create different maps, configurations and strategies designed for the rider’s bike. The tuner can then flash them directly onto the ECU or send them via email to allow the rider to download and install them in the ECU.

*Please Note:For information regarding the UC-Bridge Tuner, Please contact one of our AiM technical team for further information.

TaipanECU Connections

TheTaipanECU has 4 connectors :

Main Connector –Compatible with most off-road bikes.
CAN Connector –Connects to the Handlebar Switch and Data Logger.
2nd CAN Connector –Connect to the UC Bridge, in order to communicate with the PC.
3rd Connector –Connect to spare analogue inputs and to a possible second injector.

Aim Handlebar Switch – Optional Extra

The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings :

The handlebar switch can also be used as a shift light module.

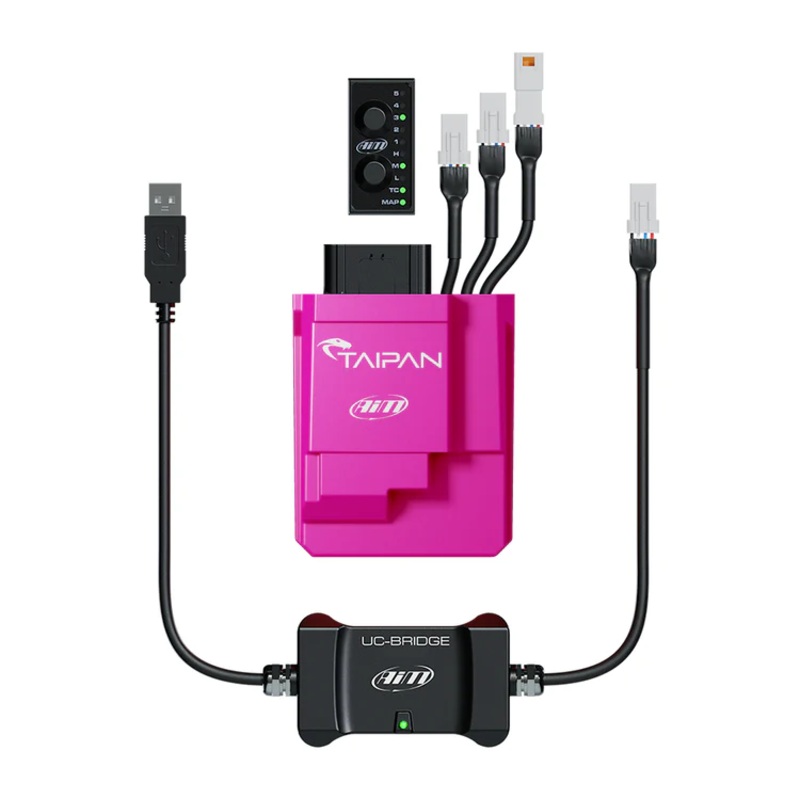

Below shows a functional diagram of products that can added to theTaipanECU:

CDAST-23FC450-MM
